Ever wondered how scientists peek beneath the Earth’s surface without digging a hole the size of a skyscraper? Enter the fascinating world of geophysical methods! These are a suite of scientific techniques used to explore and map the subsurface characteristics of our planet. From locating hidden oil reserves to uncovering ancient archaeological sites, geophysical methods play a pivotal role in various industries. Imagine being a modern-day explorer, using advanced technology to reveal what lies beneath—no shovels required!
Top Geophysical Methods Explained
When it comes to unraveling the mysteries beneath our feet, geophysical methods are the superhero squad of the scientific world. Each method brings its unique set of tools and techniques to the table, making it essential to understand their strengths and ideal applications. Let’s dive into the crème de la crème of geophysical methods to answer the burning question: What Are The Best Geophysical Methods?
Seismic Methods
1. What Are Seismic Methods?
Imagine shouting into a cave and listening to the echoes to determine its size and shape. Seismic methods operate on a similar principle but on a much grander scale. These techniques involve generating seismic waves—vibrations that travel through the Earth—and analyzing their reflections and refractions to create a detailed image of the subsurface. It’s like having X-ray vision for the planet!
Seismic methods are rooted in the fundamental physics of wave propagation. When seismic waves encounter different geological layers, their speed and direction change, providing valuable information about the Earth’s internal structure. This makes seismic methods incredibly powerful for mapping underground formations with precision.
2. Types of Seismic Methods
Seismic surveying isn’t a one-size-fits-all approach. There are several types of seismic methods, each tailored to specific needs and environments:
- Reflection Seismic: Think of this as the detective of seismic methods. It sends waves into the ground and listens for the echoes that bounce back from different layers. This method is highly effective for mapping deep geological structures, such as oil and gas reservoirs.
- Refraction Seismic: Unlike reflection methods, refraction seismic focuses on the bending (or refracting) of waves as they pass through different materials. It’s particularly useful for determining the depth and properties of the Earth’s crust and upper mantle.
- Surface Wave Methods: These methods analyze waves that travel along the Earth’s surface. They’re excellent for assessing shallow subsurface conditions, making them ideal for engineering projects and environmental studies.
Each type of seismic method offers unique insights, making them the best geophysical methods for various applications.
3. Applications of Seismic Methods
Seismic methods are versatile and find applications across multiple industries. Here are some of the top uses:
- Oil and Gas Exploration: The oil industry heavily relies on reflection seismic surveys to locate potential hydrocarbon reservoirs. By mapping underground formations, companies can identify the best drilling sites, minimizing environmental impact and maximizing efficiency.
- Earthquake Studies: Seismologists use seismic methods to monitor and understand earthquake activity. By analyzing seismic waves generated by earthquakes, they can assess the Earth’s internal structure and improve earthquake prediction models.
- Engineering and Construction: Before building skyscrapers, bridges, or tunnels, engineers use seismic surveys to evaluate the ground conditions. This ensures that structures are built on stable foundations, reducing the risk of future structural issues.
- Environmental Assessments: Seismic methods help in mapping contamination plumes and assessing the integrity of landfills. This information is crucial for environmental remediation projects and ensuring public safety.
Case Study: In the early 2000s, a major oil company employed reflection seismic methods to discover a new offshore oil field. The seismic data revealed intricate geological structures that indicated the presence of substantial oil reserves. This discovery not only boosted the company’s production but also contributed significantly to the global oil supply.
Fun Fact: The term “seismic” might make you think of earthquakes, but seismic methods are so versatile that they’re also used in archaeology to uncover hidden ancient structures without disturbing them!
Electrical Resistivity Tomography (ERT)
When it comes to unveiling the secrets beneath the Earth’s surface, Electrical Resistivity Tomography (ERT) stands out as one of the best geophysical methods. Think of ERT as the Earth’s personal health monitor, measuring how different subsurface materials resist electrical current. This method provides a detailed image of the underground, helping scientists and engineers make informed decisions without breaking ground.
1. Understanding Electrical Resistivity
At its core, Electrical Resistivity Tomography (ERT) measures the resistivity of subsurface materials. Resistivity is a property that indicates how strongly a material opposes the flow of electric current. Different materials have different resistivities—for example, clay might have a high resistivity, while wet sand typically has lower resistivity.
How ERT Works:
- Setup: Electrodes are placed in the ground in a specific configuration.
- Injection: An electrical current is injected into the ground through these electrodes.
- Measurement: Voltage differences are measured between other pairs of electrodes.
- Interpretation: Using these measurements, scientists create a 2D or 3D image of the subsurface resistivity distribution.
This non-invasive method is incredibly versatile, making it one of the best geophysical methods for a wide range of applications.
2. Variations of Electrical Resistivity Methods
ERT isn’t a one-trick pony; it comes in several flavors, each suited to different tasks:
- Vertical Electrical Sounding (VES):
- Purpose: Determines resistivity at different depths.
- Application: Ideal for groundwater exploration and mapping soil layers.
- Cross-Hole Resistivity:
- Purpose: Measures resistivity between two or more boreholes.
- Application: Used in engineering projects to assess the integrity of foundations or to monitor contaminant spread.
- 2D and 3D Resistivity Tomography:
- Purpose: Provides detailed images of the subsurface.
- Application: Perfect for complex geological settings, mineral exploration, and environmental studies.
Each variation of ERT offers unique insights, making it a top contender among the best geophysical methods.
3. Uses of Electrical Resistivity
The versatility of Electrical Resistivity Tomography means it can be applied across various fields. Here are some of the top uses:
- Groundwater Exploration:
- Why It’s Important: Identifying aquifers and determining water table levels.
- How ERT Helps: Maps areas of high and low resistivity to locate water-bearing formations.
- Contaminant Detection:
- Why It’s Important: Ensuring environmental safety by locating pollutants.
- How ERT Helps: Detects changes in resistivity caused by contaminants in soil and groundwater.
- Mineral Exploration:
- Why It’s Important: Identifying valuable mineral deposits.
- How ERT Helps: Differentiates between various rock types and mineral concentrations based on resistivity contrasts.
- Archaeological Investigations:
- Why It’s Important: Uncovering hidden structures without excavation.
- How ERT Helps: Reveals buried artifacts and features by detecting resistivity anomalies.
Case Study: In 2018, a team of environmental scientists used ERT to identify a previously undetected underground contaminant plume at a former industrial site. By mapping the resistivity variations, they pinpointed the exact location and extent of the contamination, enabling targeted remediation efforts and preventing further environmental damage.
Fun Fact: Did you know that ERT can be used to find ancient Roman aqueducts buried beneath modern cities? It’s like having a time machine that lets you see the past without any digging!
Advantages of Electrical Resistivity Tomography
- Non-Invasive: No need for extensive drilling or excavation.
- High Resolution: Provides detailed images of the subsurface.
- Cost-Effective: Generally more affordable compared to other geophysical methods.
- Versatile Applications: Suitable for a wide range of industries and purposes.
Disadvantages of Electrical Resistivity Tomography
- Limited Depth Penetration: Effectiveness decreases with greater depth.
- Sensitivity to Noise: Electrical noise from the environment can affect data quality.
- Requires Expertise: Interpretation of results requires specialized knowledge.
Electrical Resistivity Tomography vs. Other Geophysical Methods
| Method | Depth Penetration | Resolution | Cost | Best For |
|---|---|---|---|---|
| Seismic Methods | High | High | Expensive | Oil exploration, earthquake studies |
| Electrical Resistivity | Moderate | High | Moderate | Groundwater, contamination detection |
| Magnetic Surveys | Variable | Moderate | Low to Moderate | Mineral exploration, archaeological sites |

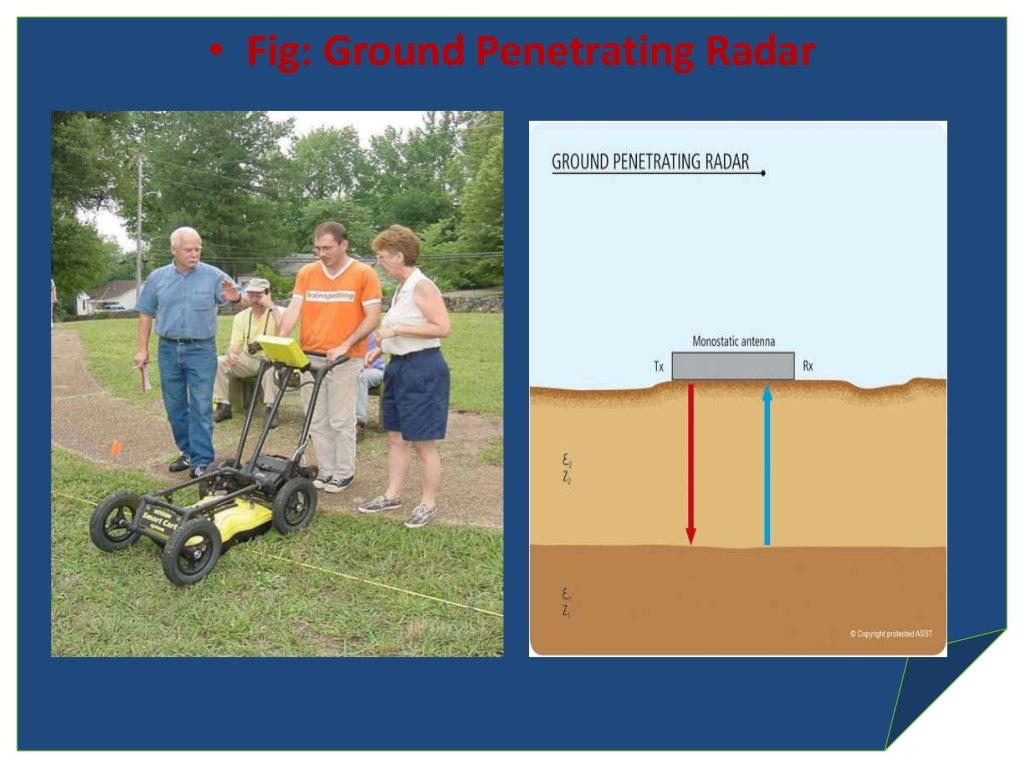

| Ground Penetrating Radar | Shallow | Very High | Moderate | Utility detection, infrastructure assessment |
Bold Insight: While seismic methods excel in deep exploration, ERT shines with its high-resolution imaging of shallower subsurface features, making it a crucial tool in environmental and engineering projects.
Magnetic Surveys
When it comes to the toolkit of the best geophysical methods, Magnetic Surveys hold a prominent place. Think of them as the Earth’s very own metal detector, capable of uncovering hidden treasures and geological secrets by measuring variations in the Earth’s magnetic field. Whether you’re searching for mineral deposits, archaeological artifacts, or mapping geological structures, magnetic surveys offer a powerful and non-invasive way to explore the subsurface.
1. Basics of Magnetic Surveying
At its core, Magnetic Surveying involves measuring the Earth’s magnetic field to detect anomalies caused by the presence of magnetic minerals like magnetite. These anomalies can indicate the presence of various geological features or materials, making magnetic surveys a versatile tool in geophysical exploration.
How Magnetic Surveys Work:
- Magnetic Field Measurement: Instruments called magnetometers are used to measure the strength and direction of the Earth’s magnetic field at various points across a survey area.
- Data Collection: As the magnetometer moves over the ground, it records variations in the magnetic field caused by underlying geological structures or mineral deposits.
- Data Interpretation: The collected data is then processed and analyzed to create maps that highlight areas of magnetic anomalies, revealing potential sites of interest.
Why It’s Important: Magnetic surveys are invaluable because they can cover large areas relatively quickly and are highly sensitive to even subtle changes in the magnetic field. This makes them one of the best geophysical methods for initial reconnaissance and detailed mapping of subsurface features.
2. Types of Magnetic Surveys
Just like superheroes have different specialties, there are various types of magnetic surveys, each designed to tackle specific exploration challenges:
- Aeromagnetic Surveys:
- Description: Conducted from aircraft, aeromagnetic surveys cover vast areas efficiently.
- Application: Ideal for regional mapping and large-scale mineral exploration.
- Ground-Based Magnetic Surveys:
- Description: Performed on foot, using handheld or vehicle-mounted magnetometers.
- Application: Suitable for detailed mapping in smaller, more accessible areas like archaeological sites or specific geological formations.
- Marine Magnetic Surveys:
- Description: Carried out from ships, these surveys map the seafloor’s magnetic anomalies.
- Application: Crucial for offshore mineral exploration, including undersea oil and gas reservoirs.
Each type of magnetic survey offers unique advantages, making magnetic methods adaptable to a wide range of exploration needs.
3. Applications of Magnetic Methods
The versatility of Magnetic Surveys makes them one of the best geophysical methods for various applications across different industries:
- Mineral and Ore Exploration:
- Why It’s Important: Identifying economically viable mineral deposits is essential for mining operations.
- How Magnetic Surveys Help: Detect variations in the magnetic field caused by mineral-rich rocks, guiding exploration efforts to promising areas.
- Archaeological Site Detection:
- Why It’s Important: Preserving historical artifacts without excavation is a priority in archaeology.
- How Magnetic Surveys Help: Reveal buried structures, walls, and artifacts by identifying magnetic anomalies associated with human-made objects.
- Geological Mapping:
- Why It’s Important: Understanding the distribution of different rock types and geological structures is fundamental for various engineering and environmental projects.
- How Magnetic Surveys Help: Provide detailed maps of subsurface geology, highlighting faults, folds, and other structural features.
- Environmental Studies:
- Why It’s Important: Assessing the impact of natural and human activities on the environment requires accurate subsurface information.
- How Magnetic Surveys Help: Monitor changes in the subsurface, such as contamination plumes or soil composition variations.
- Engineering and Construction:
- Why It’s Important: Ensuring the stability and safety of construction projects depends on accurate subsurface data.
- How Magnetic Surveys Help: Identify subsurface anomalies that could affect foundation integrity or construction processes.
Case Study: In the mid-2010s, an archaeological team in Egypt utilized ground-based magnetic surveys to locate previously unknown structures beneath the sands near the Valley of the Kings. The magnetic data revealed intricate layouts of tombs and corridors without any digging, allowing for targeted excavations that preserved the integrity of these ancient sites.
Fun Fact: Did you know that magnetic surveys played a pivotal role in the discovery of the ancient Roman city of Ephesus? By mapping magnetic anomalies, archaeologists were able to pinpoint the locations of grand buildings and streets buried beneath layers of sediment. It’s like having a treasure map where the “X” marks the historical gold!
Advantages of Magnetic Surveys
- Non-Invasive: No need for drilling or excavation, preserving the integrity of the survey area.
- Wide Coverage: Especially with aeromagnetic surveys, large areas can be covered quickly and efficiently.
- High Sensitivity: Capable of detecting subtle magnetic anomalies, making it effective for identifying small-scale features.
- Cost-Effective: Generally more affordable compared to some other geophysical methods, especially for large-area surveys.
- Rapid Data Collection: Modern magnetometers allow for quick and accurate data acquisition.
Disadvantages of Magnetic Surveys
- Interference from External Sources: Man-made structures or ferrous objects can create noise in the data.
- Limited Depth Penetration: Effectiveness decreases for deep-seated anomalies compared to methods like seismic surveying.
- Requires Expertise: Accurate interpretation of magnetic data demands specialized knowledge and experience.
- Environmental Limitations: Certain terrains, such as heavily vegetated areas, can complicate data collection.
Magnetic Surveys vs. Other Geophysical Methods
| Method | Depth Penetration | Resolution | Cost | Best For |
|---|---|---|---|---|
| Seismic Methods | High | High | Expensive | Oil exploration, earthquake studies |
| Electrical Resistivity | Moderate | High | Moderate | Groundwater, contamination detection |
| Magnetic Surveys | Variable | Moderate | Low to Moderate | Mineral exploration, archaeological sites |
| Ground Penetrating Radar | Shallow | Very High | Moderate |
Bold Insight: While magnetic surveys excel in covering large areas quickly and are cost-effective for initial explorations, they complement other geophysical methods like seismic methods and ERT by providing essential magnetic data that can enhance overall subsurface understanding.
